Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor

Communication Interface : rs485

Place of Origin : Guangdong, China

Brand Name : CBG

Barrier open/close time : 1.2s

Model Number : 21B-3

Access contol type : RFID card

Turnstile function : Anti-pinch

barrier motor : Brushless motor

Protection Level : ip55

Material : Aluminium alloy, Stainless Steel

Operation Direction : 1-way

Working temperature : -30-60℃

Power supply : 120W

Usage : Outdoor

Boom Barrier Length : 1.5-6M

Work voltage : DC-24V

Feature : Waterproof

Operating speed : 0.8-6s(Depend on arm length)

Protection Grade : IP44

Operating life : >5 million

Sensitivity : barrier gate

MOQ : 2 pieces

Price : $288/pieces 2-99 pieces

Contact Now

Product Description
Overview
Company Profile

Product description
A boom barrier is designed for a range of max opening up to 6m. It is ideal solution for controlling vehicle traffic in parking lots, private entrances, industrial and public uses.
As a manufacturer, we have more than 10 year experiences on designing, producing and installing boom barriers. We have good quality control, so we vigorously test our boom barriers to make sure a longer life span.
Application:

Office Buildings.
Shopping and mall Centers.
Vehicle Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
Stations
Features
1) The movement adopts side mounting, which is convenient for installation and compact in structure.
2) The main of the movement is made of aluminum alloy and made by die-casting process. It has reliable mechanical strength, beautiful appearance, accurate size and good heat dissipation.
3) The movement adopts gear reduction transmission, with high transmission efficiency and low power output loss; Gear material scm421, carburizing heat treatment process, precision gear grinding, wear resistance, impact resistance, service life far beyond worm gear transmission structure.
4) The movement adopts DC brushless motor, which has large output torque and small volume. The speed can be adjusted arbitrarily through the controller. When the rod is dropped and lifted in place, the deceleration buffer is realized, so that the brake rod is stable in place.
5) The motor adopts DC24V safety voltage, which avoids electric shock accidents caused by leakage and ensures personal safety.
Parameters
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Technical Parameters
Power supply
DC 24V
Open/close speed
0.8s to 6s
Working temperature
-30~60℃
Rated power
100-120w
Motor rated speed
1500r/min
Humidity
<=90%
Remote control distance
30 m
Max boom length
6m
External power
220V 50/60HZ
Rated torque
0.64N.M
Product picture
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
interior structure:
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Big torque motor
Collision resistant motor

Toll station motor

MCBF more 5 million times

Fast response

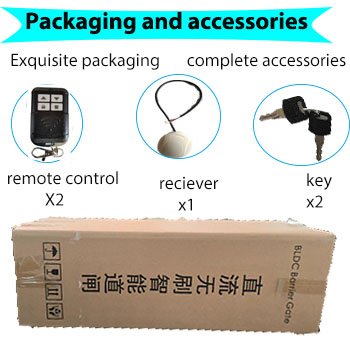

Packing & Delivery
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Boom barrier projects
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Exhibition
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
Certification
Waterproof Automatic Boom Barrier Gate for Parking Systems with Brushless DC Motor
